Dodge Quantis RHB right-angle helical-bevel reducers run at 98.5 percent efficiency per gear stage, in a high-strength cast-iron housing, and are dimensionally interchangeable with NORD, SEW-EURODRIVE and other major brands. Stock units come foot-mounted with a solid shaft or flange-mounted with a hollow bore.
149 stock reducers are listed by size and ratio below, each with a NEMA C-face clamp-collar input. Any other ratio, input (NEMA or IEC, motor or shaft) or mounting is built to order.
Jump to: Sizes & ratios | Catalogs & manuals
Quantis RHB right-angle helical-bevel sizes
Sizes: 38 | 48 | 58 | 68 | 88 | 108 | 128 | 148 | 168
Not sure which one you need? Send your motor hp, output speed and shaft size through our quote form or call 800-985-6929 and we'll size it for you.
Catalogs & manuals
- Quantis Gearmotors & Reducers Catalog
- Quantis Stock Reducer Solutions
- Quantis RHB Reducer
- Quantis Gearmotors & Reducers Brochure
Data from Dodge catalogs. AutomatedPT is an independent distributor and is not affiliated with Dodge Industrial, Inc.

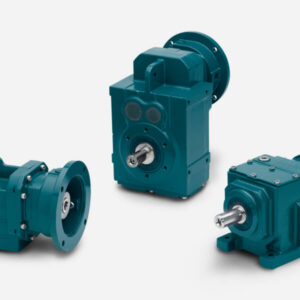

- Quantis RHB Right-Angle Helical-Bevel Size 108
- Built to order – ratio, input and mounting quoted to your application
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,568 lb-in output torque, 2.65 hp max. input
- 278.10:1 ratio
- 140TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,568 lb-in output torque, 2.4 hp max. input
- 307.24:1 ratio
- 140TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,213 lb-in output torque, 10.36 hp max. input
- 70.24:1 ratio
- 180TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,568 lb-in output torque, 8.9 hp max. input
- 82.90:1 ratio
- 180TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,568 lb-in output torque, 7.38 hp max. input
- 99.90:1 ratio
- 180TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 26,568 lb-in output torque, 12.05 hp max. input
- 61.22:1 ratio
- 210TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 12,540 lb-in output torque, 45.36 hp max. input
- 7.68:1 ratio
- 250TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 21,134 lb-in output torque, 42.72 hp max. input
- 13.74:1 ratio
- 250TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 108
- 23,527 lb-in output torque, 33.74 hp max. input
- 19.63:1 ratio
- 250TC clamp-collar C-face input
- Request a quote for price and lead time
- Quantis RHB Right-Angle Helical-Bevel Size 128
- Built to order – ratio, input and mounting quoted to your application
- Request a quote for price and lead time
- Quantis RHB right-angle helical-bevel, size 128
- 41,623 lb-in output torque, 8.49 hp max. input
- 136.07:1 ratio
- 180TC clamp-collar C-face input
- Request a quote for price and lead time
