G3500HPH Dodge MagnaGear XTR G3500 Parallel Shaft Reducer
- MagnaGear XTR G3500 parallel-shaft reducer
- Up to 5,159 hp input and 3,445,000 lb-in output torque
- Double or triple reduction ratios
- Solid or hollow output, left or right hand, optional backstop
- Request a quote for price and lead time

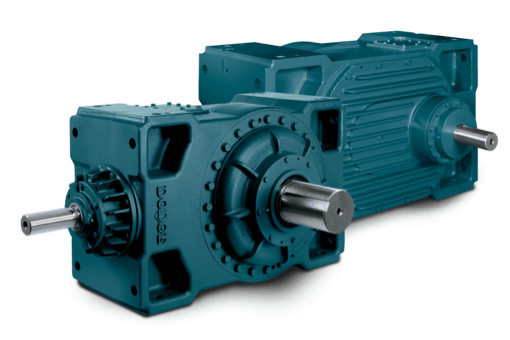

The Dodge MagnaGear XTR size G3500 parallel-shaft reducer. Choose the ratio, output shaft and assembly to see the part number.
The Dodge MagnaGear XTR combines planetary and helical gearing for high-torque, harsh-duty applications such as mining, aggregate and grain handling. Industry-leading bearing ratings, a standard dual seal system with HNBR seals and EP lubricant-compatible backstops keep it running with maximum uptime.
Specifications
| Gearing | Planetary and helical |
|---|---|
| Seals | Dual purgeable seal system, HNBR |
| Output shaft | Hollow shaft |
| Ratios available | 13:1 (double); 14:1 (double); 16:1 (double); 18:1 (double); 20:1 (double); 22:1 (double); 25:1 (double); 28:1 (double); 32:1 (double); 36:1 (double); 40:1 (double) |
| Assembly / backstop options | Left hand; Left hand, backstop CCW; Left hand, backstop CW; Right hand; Right hand, backstop CCW; Right hand, backstop CW |
| Output torque rating | 3,445,000 lb-in |
| Input power rating (1,800 rpm, 1.0 SF) | 2,543–5,159 hp depending on ratio |
Part numbers
66 Dodge part numbers on this page; choose the options above to see the matching part number.
| Part number | Model | Ratio | Assembly / backstop | Input hp (1,800 rpm) | Output rpm (1,800 rpm input) | Output torque (lb-in, 1,800 rpm) |
|---|---|---|---|---|---|---|
| 448458L | G3500HPHL2-13 | 13:1 (double) | Left hand | |||
| 448469LCC | G3500HPHL2-13 + backstop | 13:1 (double) | Left hand, backstop CCW | |||
| 448469LCW | G3500HPHL2-13 + backstop | 13:1 (double) | Left hand, backstop CW | |||
| 448458R | G3500HPHR2-13 | 13:1 (double) | Right hand | |||
| 448469RCC | G3500HPHR2-13 + backstop | 13:1 (double) | Right hand, backstop CCW | |||
| 448469RCW | G3500HPHR2-13 + backstop | 13:1 (double) | Right hand, backstop CW | |||
| 448459L | G3500HPHL2-14 | 14:1 (double) | Left hand | |||
| 448470LCC | G3500HPHL2-14 + backstop | 14:1 (double) | Left hand, backstop CCW | |||
| 448470LCW | G3500HPHL2-14 + backstop | 14:1 (double) | Left hand, backstop CW | |||
| 448459R | G3500HPHR2-14 | 14:1 (double) | Right hand | |||
| 448470RCC | G3500HPHR2-14 + backstop | 14:1 (double) | Right hand, backstop CCW | |||
| 448470RCW | G3500HPHR2-14 + backstop | 14:1 (double) | Right hand, backstop CW | |||
| 448460L | G3500HPHL2-16 | 16:1 (double) | Left hand | |||
| 448471LCC | G3500HPHL2-16 + backstop | 16:1 (double) | Left hand, backstop CCW | |||
| 448471LCW | G3500HPHL2-16 + backstop | 16:1 (double) | Left hand, backstop CW | |||
| 448460R | G3500HPHR2-16 | 16:1 (double) | Right hand | |||
| 448471RCC | G3500HPHR2-16 + backstop | 16:1 (double) | Right hand, backstop CCW | |||
| 448471RCW | G3500HPHR2-16 + backstop | 16:1 (double) | Right hand, backstop CW | |||
| 448461L | G3500HPHL2-18 | 18:1 (double) | Left hand | 5,159 | 100 | 3,301,000 |
| 448472LCC | G3500HPHL2-18 + backstop | 18:1 (double) | Left hand, backstop CCW | 5,159 | 100 | 3,301,000 |
| 448472LCW | G3500HPHL2-18 + backstop | 18:1 (double) | Left hand, backstop CW | 5,159 | 100 | 3,301,000 |
| 448461R | G3500HPHR2-18 | 18:1 (double) | Right hand | 5,159 | 100 | 3,301,000 |
| 448472RCC | G3500HPHR2-18 + backstop | 18:1 (double) | Right hand, backstop CCW | 5,159 | 100 | 3,301,000 |
| 448472RCW | G3500HPHR2-18 + backstop | 18:1 (double) | Right hand, backstop CW | 5,159 | 100 | 3,301,000 |
| 448462L | G3500HPHL2-20 | 20:1 (double) | Left hand | 4,676 | 90 | 3,319,000 |
| 448473LCC | G3500HPHL2-20 + backstop | 20:1 (double) | Left hand, backstop CCW | 4,676 | 90 | 3,319,000 |
| 448473LCW | G3500HPHL2-20 + backstop | 20:1 (double) | Left hand, backstop CW | 4,676 | 90 | 3,319,000 |
| 448462R | G3500HPHR2-20 | 20:1 (double) | Right hand | 4,676 | 90 | 3,319,000 |
| 448473RCC | G3500HPHR2-20 + backstop | 20:1 (double) | Right hand, backstop CCW | 4,676 | 90 | 3,319,000 |
| 448473RCW | G3500HPHR2-20 + backstop | 20:1 (double) | Right hand, backstop CW | 4,676 | 90 | 3,319,000 |
| 448463L | G3500HPHL2-22 | 22:1 (double) | Left hand | |||
| 448474LCC | G3500HPHL2-22 + backstop | 22:1 (double) | Left hand, backstop CCW | |||
| 448474LCW | G3500HPHL2-22 + backstop | 22:1 (double) | Left hand, backstop CW | |||
| 448463R | G3500HPHR2-22 | 22:1 (double) | Right hand | |||
| 448474RCC | G3500HPHR2-22 + backstop | 22:1 (double) | Right hand, backstop CCW | |||
| 448474RCW | G3500HPHR2-22 + backstop | 22:1 (double) | Right hand, backstop CW | |||
| 448464L | G3500HPHL2-25 | 25:1 (double) | Left hand | 3,771 | 72 | 3,354,000 |
| 448475LCC | G3500HPHL2-25 + backstop | 25:1 (double) | Left hand, backstop CCW | 3,771 | 72 | 3,354,000 |
| 448475LCW | G3500HPHL2-25 + backstop | 25:1 (double) | Left hand, backstop CW | 3,771 | 72 | 3,354,000 |
| 448464R | G3500HPHR2-25 | 25:1 (double) | Right hand | 3,771 | 72 | 3,354,000 |
| 448475RCC | G3500HPHR2-25 + backstop | 25:1 (double) | Right hand, backstop CCW | 3,771 | 72 | 3,354,000 |
| 448475RCW | G3500HPHR2-25 + backstop | 25:1 (double) | Right hand, backstop CW | 3,771 | 72 | 3,354,000 |
| 448465L | G3500HPHL2-28 | 28:1 (double) | Left hand | 3,485 | 64 | 3,363,000 |
| 448476LCC | G3500HPHL2-28 + backstop | 28:1 (double) | Left hand, backstop CCW | 3,485 | 64 | 3,363,000 |
| 448476LCW | G3500HPHL2-28 + backstop | 28:1 (double) | Left hand, backstop CW | 3,485 | 64 | 3,363,000 |
| 448465R | G3500HPHR2-28 | 28:1 (double) | Right hand | 3,485 | 64 | 3,363,000 |
| 448476RCC | G3500HPHR2-28 + backstop | 28:1 (double) | Right hand, backstop CCW | 3,485 | 64 | 3,363,000 |
| 448476RCW | G3500HPHR2-28 + backstop | 28:1 (double) | Right hand, backstop CW | 3,485 | 64 | 3,363,000 |
| 448466L | G3500HPHL2-32 | 32:1 (double) | Left hand | |||
| 448477LCC | G3500HPHL2-32 + backstop | 32:1 (double) | Left hand, backstop CCW | |||
| 448477LCW | G3500HPHL2-32 + backstop | 32:1 (double) | Left hand, backstop CW | |||
| 448466R | G3500HPHR2-32 | 32:1 (double) | Right hand | |||
| 448477RCC | G3500HPHR2-32 + backstop | 32:1 (double) | Right hand, backstop CCW | |||
| 448477RCW | G3500HPHR2-32 + backstop | 32:1 (double) | Right hand, backstop CW | |||
| 448467L | G3500HPHL2-36 | 36:1 (double) | Left hand | |||
| 448478LCC | G3500HPHL2-36 + backstop | 36:1 (double) | Left hand, backstop CCW | |||
| 448478LCW | G3500HPHL2-36 + backstop | 36:1 (double) | Left hand, backstop CW | |||
| 448467R | G3500HPHR2-36 | 36:1 (double) | Right hand | |||
| 448478RCC | G3500HPHR2-36 + backstop | 36:1 (double) | Right hand, backstop CCW | |||
| 448478RCW | G3500HPHR2-36 + backstop | 36:1 (double) | Right hand, backstop CW | |||
| 448468L | G3500HPHL2-40 | 40:1 (double) | Left hand | 2,543 | 45 | 3,416,000 |
| 448479LCC | G3500HPHL2-40 + backstop | 40:1 (double) | Left hand, backstop CCW | 2,543 | 45 | 3,416,000 |
| 448479LCW | G3500HPHL2-40 + backstop | 40:1 (double) | Left hand, backstop CW | 2,543 | 45 | 3,416,000 |
| 448468R | G3500HPHR2-40 | 40:1 (double) | Right hand | 2,543 | 45 | 3,416,000 |
| 448479RCC | G3500HPHR2-40 + backstop | 40:1 (double) | Right hand, backstop CCW | 2,543 | 45 | 3,416,000 |
| 448479RCW | G3500HPHR2-40 + backstop | 40:1 (double) | Right hand, backstop CW | 2,543 | 45 | 3,416,000 |
Mounting kits and other accessories are in MagnaGear XTR accessories.
Catalogs & manuals
Request a quote for price and lead time, or call 800-985-6929.
Data from Dodge catalogs; confirm details with us before ordering. AutomatedPT is an independent distributor and is not affiliated with Dodge Industrial, Inc. Dodge® and the product names shown are trademarks of Dodge Industrial, Inc.
